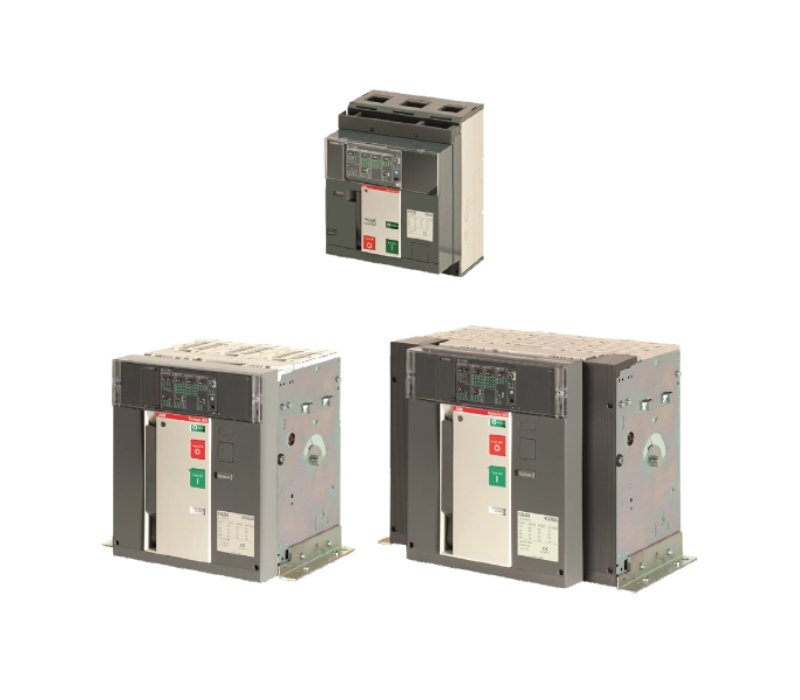

SACE Formula Air ACB
- Range from 630A to 4000A in 3 frame sizes and 2 types of protection release
- Icu = Ics = Icw/1 sec = 50kA at 440V
- Available in fixed and draw out versions
- Trip history – Last 20 trip history and Last 100 events with time stamping
- Fully rated neutral with built-in protection
- Terminal orientation changeable at site for ease of termination
- New push-in type accessory terminal box
- Clear marking of accessory cabinet and terminal box for easy identification
SACE Formula DSP MCCB
- Compliant to IEC 60947-2 standards
- Offering from 40A to 800A in 4 frame sizes
- Available upto 50kA performance levels (Icu = Ics)
- Circuit breakers for AC and DC applications
- Double insulation , Isolation behaviour and Positive operation
- All type of Accessories (Extended Spreaders, Rotary Handle, Shunt Opening and Closing Release, Motor Operator, Under Volage Release, Aux and signalling Contact, Mechanical Interlocks and many more)

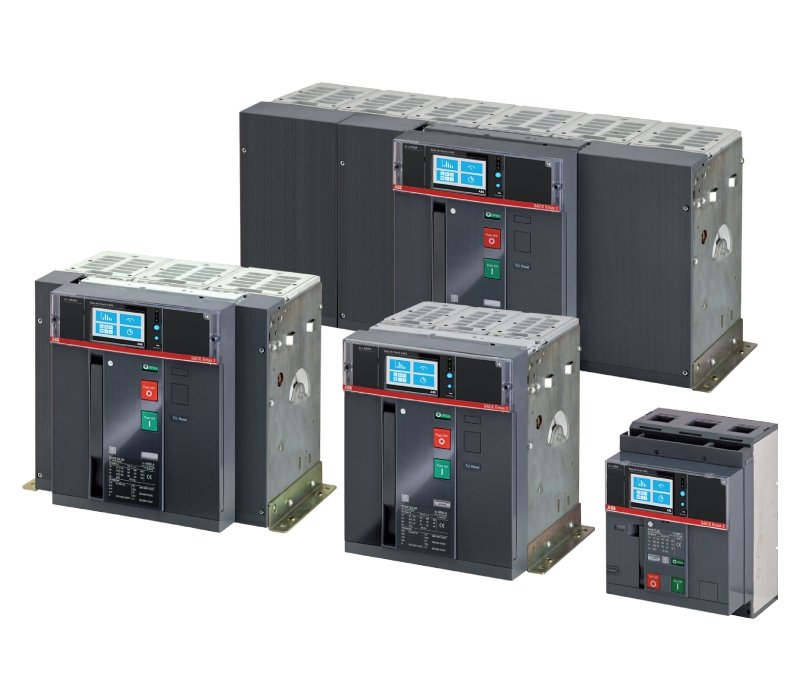

SACE Emax 2 ACB
- Range from 630A to 6300A in fixed and Draw out Versions and from 42KA to 200KA
- Compliant to IEC 60947, EN 60947 international Standard and All International Certifications
- EKIP LI/ LSIG Protection in DIP Switch, Touch and Hi Touch Release for Flawless Digital Experience
- Switch the disconnector version from 630A to 6300A.
- Measure, Monitor and Control of all Electrical Parameters from ACB Display
- All type of Accessories (Shunt Opening and Closing Release, Motor Operator, Under Volage Release, and many more)

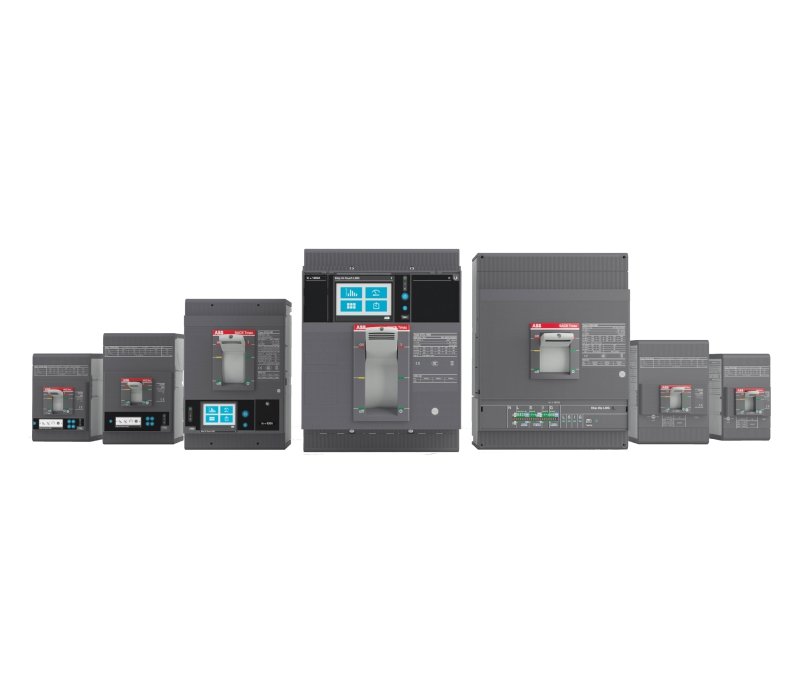

SACE Tmax XT MCCB
- Range from 1.6A to 1600A in fixed, Plug in and Draw out Versions , Breaking Capacity from 16KA to 200KA in 7 Frames.
- Compliant to IEC 60947-2, EN 60947 international Standard and All International Certifications
- Thermal Magnetic Trip Unit, EKIP Dip and EKIP Touch Release with LI,LIG and LSIG Protection.
- Switch Disconnectors and Motor Protection MCCB ranges from 1A to 800A.
- All type of Accessories (Extended Spreaders, Rotary Handle, SOR & SCR, Motor Operator, UVR, Aux and SC, Mechanical Interlocks and many more)

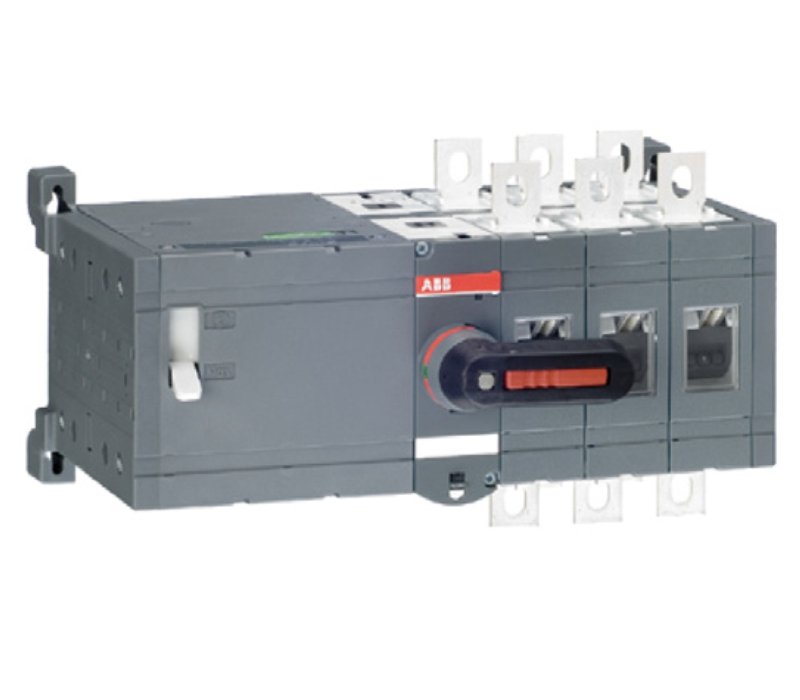

OT motorized changeover switches
- Range from 40A to 2500A (690V) in 3 Poles and 4 Poles
- A wide selection of accessories improve the usability (Aux Contact,Basic ATS etc)

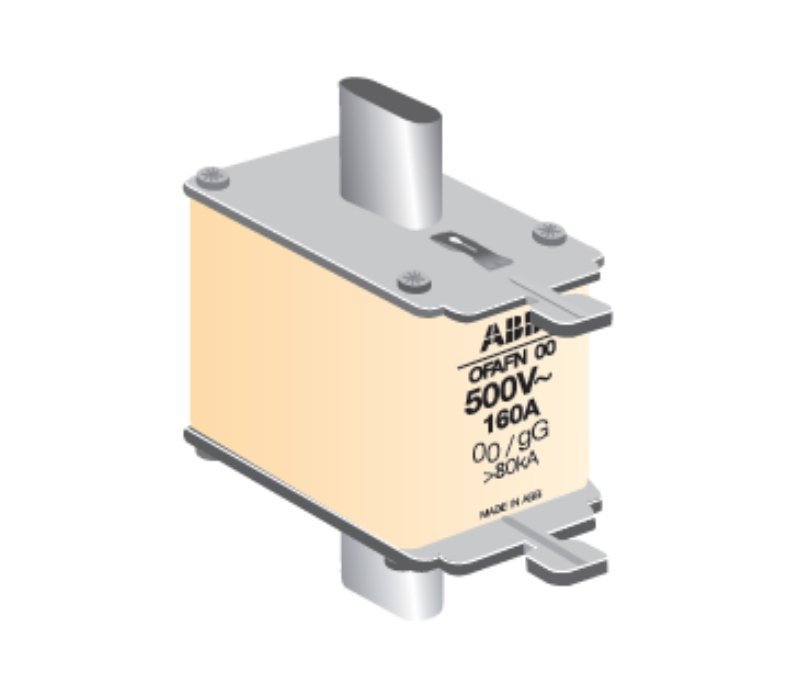

Fuse links and base, DIN-type & BS-type
- Range from 2A to 1250A in DIN Type and BS Type
- Fuse Base from Size 00 to Size 3

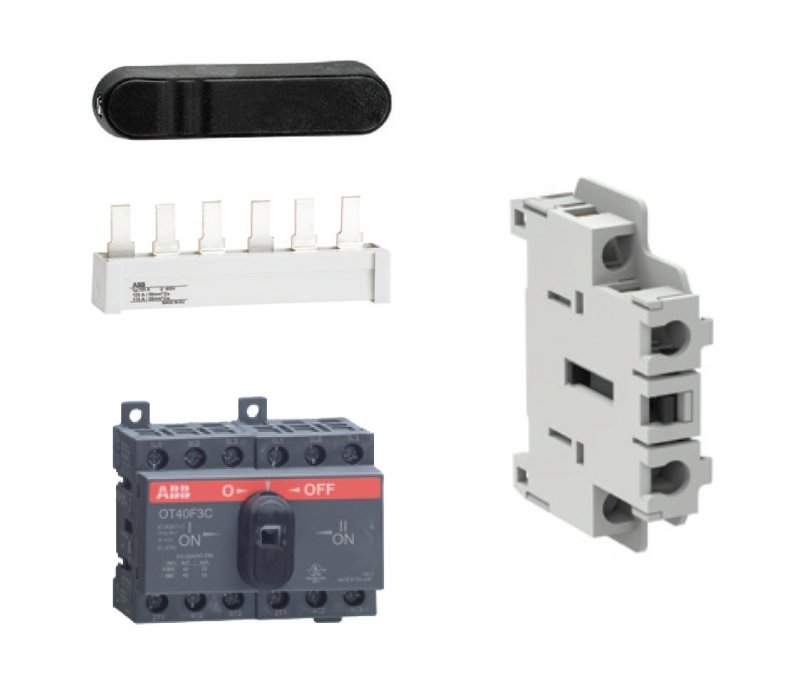

OT manual changeover switches
- Range from 16A to 3200A (690V) in 3 Poles and 4 Poles
- A wide selection of accessories improve the usability (Aux Contact, Multiple Type of Handles etc)
- Adaptable, Sustainable and Reliable Design

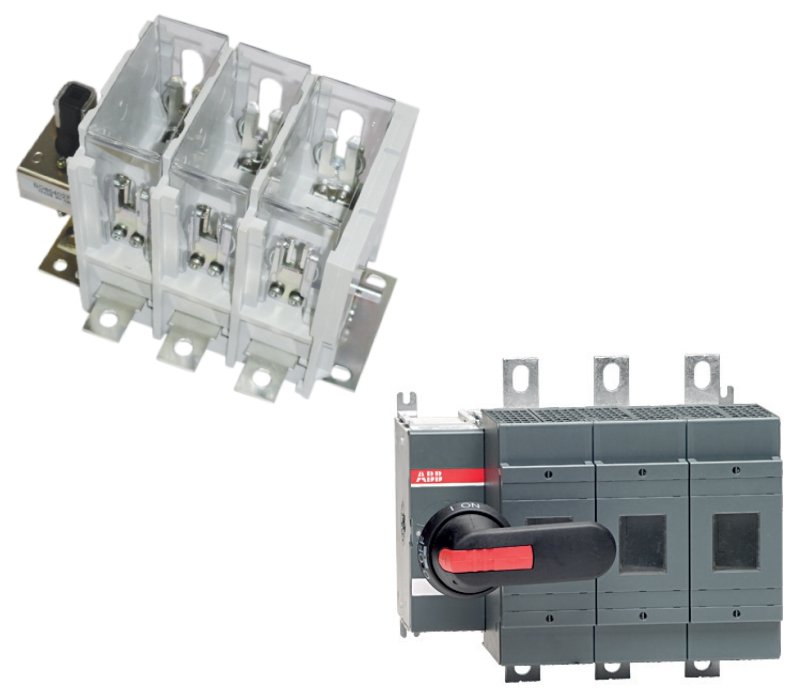

OESA/OS switch disconnector fuse, DIN-type & BS-type
- Range from 32A to 800A (690V) in DIN Type and BS Type in TP/TPN/FP Version
- Compliant to IEC 60947-3 standards and International Certifications.
- Elegant and Robust Design for All type of application
- A wide selection of accessories improve the usability of the switch fuses (Aux Contact, Neutral Links, Phase Barriers etc)
Motor starting and protection (MPCB)
- Motor Protection Circuit Breakers from 0.25A to 80A
- Breaking Capacity 50KA and 100KA
- Rotary Operated Design
- International Compliance and Standards (CE,UL,CSA) for across the range.
- All type of Accessories ( Aux Contact Block, Signalling Contact, Shunt Release etc)

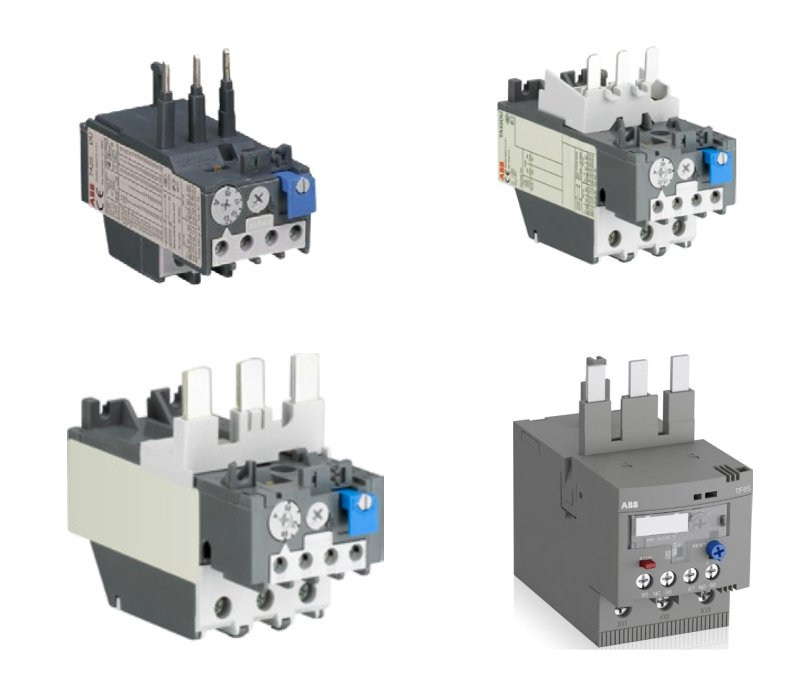

Overload Relays
- Thermal Overload Relay Range from 0.1A to 200A
- Separate Relays For Direct Mounting for AX/A Range, AF Range and Mini Contactors
- Electronic Microprocessor Based Relay from 0.1A to 800A
- Relay Base for all the ranges for variations of the fitment

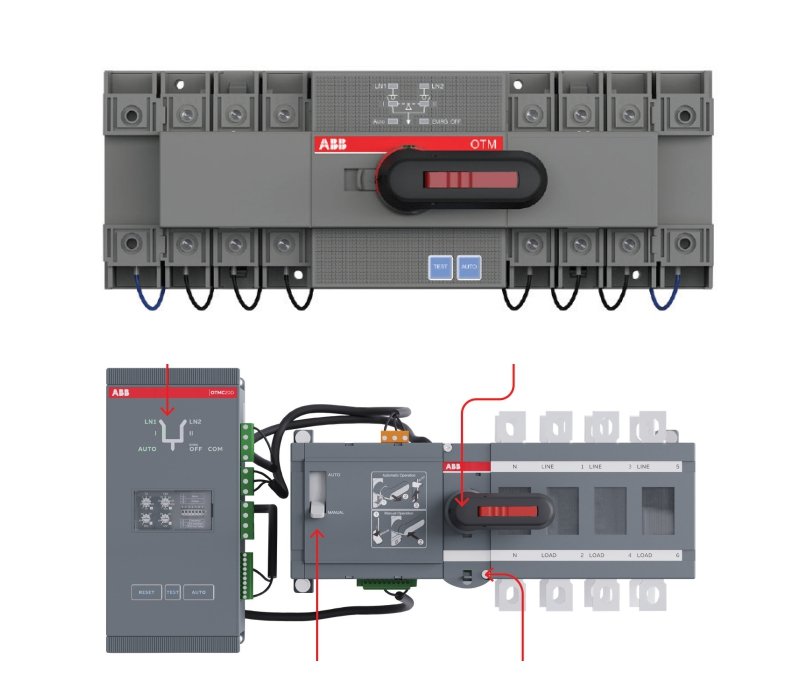

Compact ATS & OT Automatic Transfer switches
- Full product offering up to 4000 A & 600 VAC
- IEC/UL1008 approved
- Solenoid Operated mechanism for fast and reliable switching
- Fast Switching less than 50 ms with in-phase transfer
- Readily available emergency manual operation, Overlapping/Make first break last Neutral
- Generator Start and Stop Signa, Elevator pre and post signal
- High current protection and alarm load shedding programmable contacts
- On load and Off load testing, Embedded Power measurements
Contactors
- AC/DC and Universal Coil Operated Auxiliary Contactors in all configuration & voltages
- 3 Pole Contactors AX Series from 9A to 370A AC Operated
- 3 Pole Contactors A Series from 9A to 185A AC Operated
- 3 Pole Contactors AF Series from 9A to 2850A AC/DC Operated
- 4 Pole Contactors A Series from 9A to 550A AC/DC Operated
- Capacitor Duty Contactor from 12.5KVAR to 80KVAR
- All type of Accessories for contactors (Aux Contact Block , Surge Suppressors, Rotary Handle Mechanism with all accessories etc)
- Mini Contactors AC and DC Operated

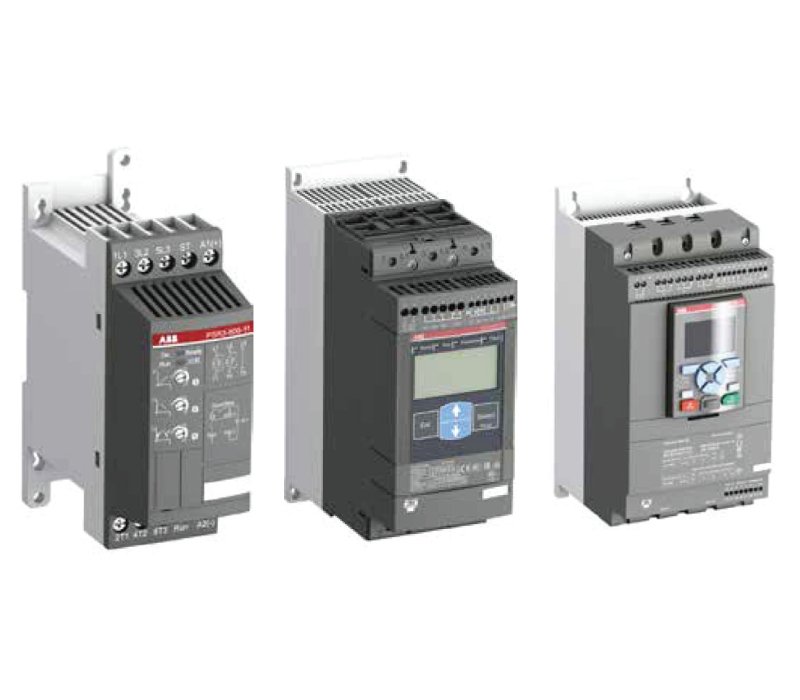

Softstarters
PSE – The efficient range
- Rated operational current: 18…370 A
- Operational voltage: 208…600 V AC
- Wide rated control supply voltage: 100…250 V AC, 50/60 Hz
- Voltage ramp and torque control for both start and stop
- Two-phase controlled, Current limit and Kick-start
- Built-in bypass for energy saving and easy installation
- External keypad rated IP66 (Type 1, 4X,12) as an option
- NEW Built-in Modbus-RTU communication for monitoring and control
- Fieldbus communication with fieldbus plug adapter and the fieldbus plug
- Analog output for display of motor current
- Electronic overload, underload and locked rotor protection
Softstarters
PSTX – The advanced range
- Rated operational current: 30 to 1250 A
- Three-phase controlled
- Operational voltage: 208 – 690 VAC
- Wide rated control supply voltage: 100 – 250 V, 50/60 Hz (inside-delta: 2160 A)
- Both in-line and inside-delta connection
- Coated circuit boards protecting from dust, moist and corrosive atmosphere
- Detachable keypad rated IP66 (4X outdoor)
- Built-in bypass for energy saving and easy installation
- Built-in Modbus RTU for monitoring and control
- Support for all major communication protocols
- Analog output for measurement of current, voltage, power factor etc.
Softstarters
PSR – The compact range
- Rated operational current: 3…105 A
- Operational voltage: 208…600 V AC
- Wide rated control supply voltage: 100…240 V AC, 50/60 Hz or 24 V AC/DC
- Two-phase controlled
- Soft start and soft stop with voltage ramp
- Built-in bypass for energy saving and easy installation Pilot Devices
Pilot Devices
- Modular Range and Compact Range of Pilot Devices
- International Compliance and Standards (CE,UL,CSA) for across the range.
- Widest range of integrated LEDs in the market
- Parts of Range IP 66, 67, 69K
- Snap-on feature reduces installation time
- Quick release contact holder
- Several bezel colors
- Unique low energy solutions, including wiping action

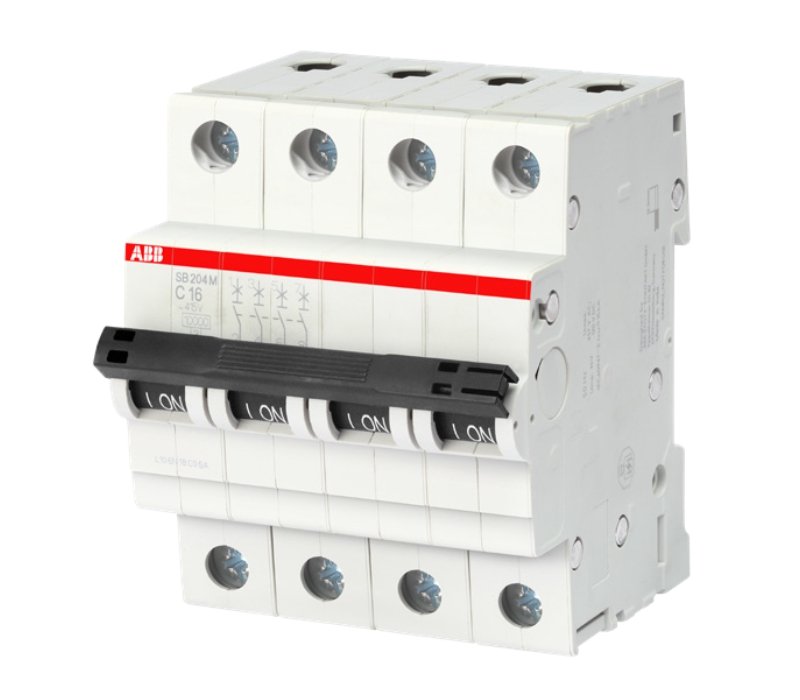

MCB
- MCB Range from 0.5A to 125A in Single, Double, Three and Four PolesBasic
- ISI Standard and IS/IEC 60898-1 compliance for all the range.
- Robust marking , Captive Screws for connections , IP20 Finger Safety and Polarity Marking
- Short Circuit Capacity of 10KA
- B,C,D Curve / Characteristics for MCB’s

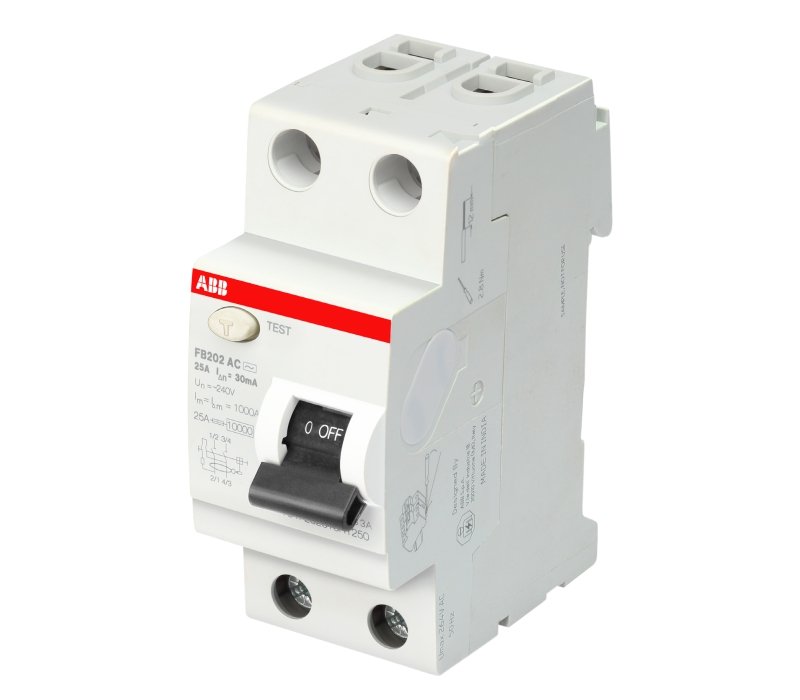

RCCB / RCBO's
- RCCB/RCBO Range from 6A to 125A in Two and Four Poles.
- ISI/CE Standard and IEC/EN 61008-1; IEC/EN 61008-2-1 compliance for all the range.
- Range for Residential, Commercial and Industrial Application (30,100 and 300mA Sensetivity)
- Robust marking , Captive Screws for connections , IP20 Finger Safety and Polarity Marking
- Auto Reclosing and Dual Termination
- Wide range of add-on accessories having 30 different types of accessories (Highest in market)
- Test Pushbutton for Verification of the correct functioning

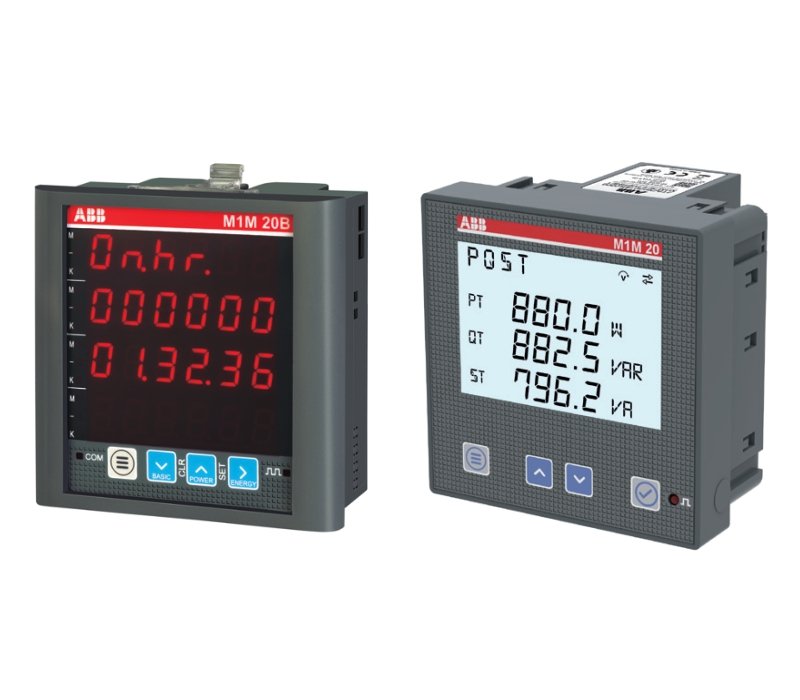

Meters
- Basic Meters , Multifunction Meters, Demand Monitors and Controllers and Network Analysers
- IEC 62053-21/22 IEC 61557-12 PMD & IEC 61010-1 Compliant Range
- Simple to Use, Easy to install, and Flawless system Integration

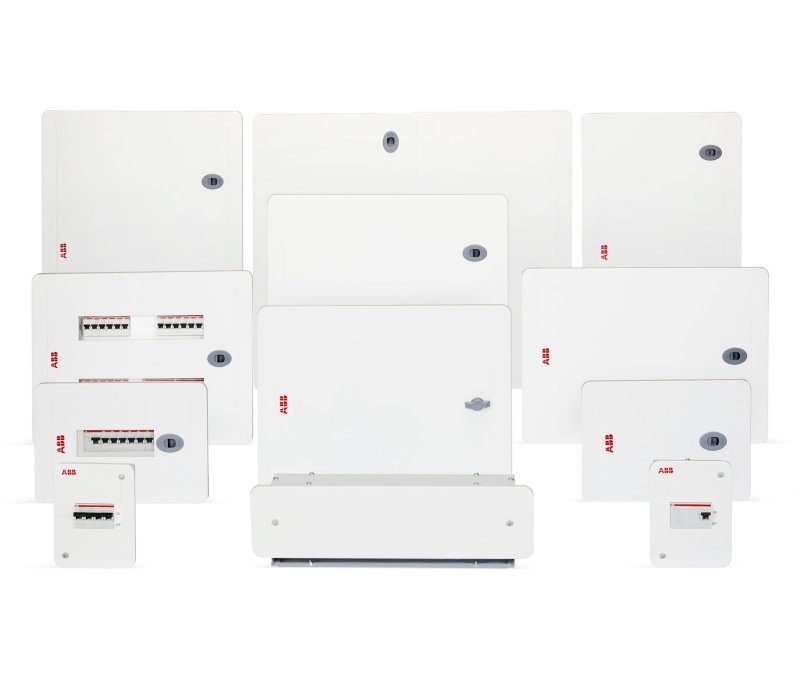

Distribution Boards
- SPN / TPN DB with Single and Double Door IP30, IP43 and IP54 Design with Horizontal and Vertical Design
- Suitable for Flush and surface mounting, Shrouded Neutral Bar & Insulated Copper Busbar
- Detachable Pan Assembly, Door Earthing
- Plug and Socket DB, Metal Enclosures, Cable End Boxes and IP65 Enclosures

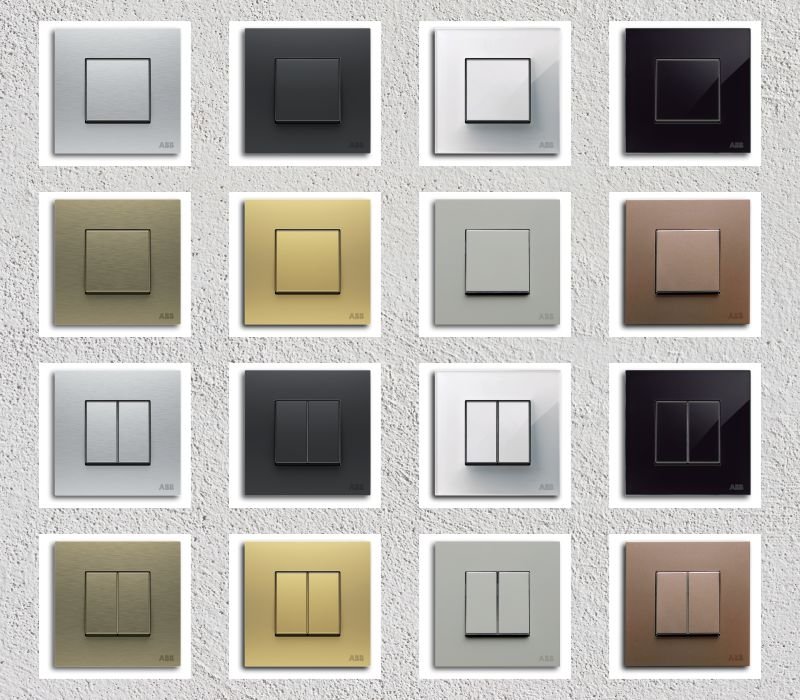

Switches
- Modern and contemporary 8 finishes
- Real stainless steel material AISI 304
- 2 finishes made in CSG glass
- Slim line design: only 4 mm
- Rocker with attractive chrome profile
- Screwless front plate ultra-slim design
